ANTENNA TUNNERS

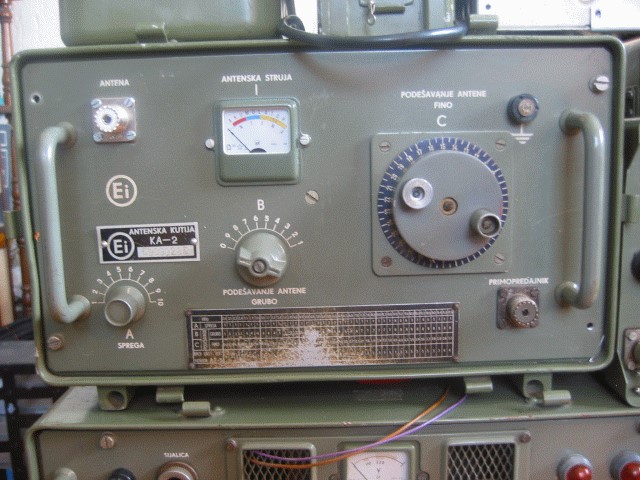

ANTENNA MATCH KA-2
Manufactured in Niš, Serbia
ELECTROMECHANICAL SET
TYPE: T MATCH, ROLLER INDUCTOR, AIR GAP CAPACITOR
FREQUENCY: 2 -12 MHz
POWER: 500 W
INDICATOR: 10 A ANTENNA CURRENT
SOURCE: Dubravko 9A6NNS, Branko 9A6AQK
ANTENNA MATCH KA-3/K
Manufactured in Niš, Serbia
ELECTROMECHANICAL SET
TYPE: π MATCH, ROLLER INDUCTOR, VACUUM CAPACITORS
FREQUENCY: 2 -30 MHz
POWER: 1500 W
INDICATOR: 10 A ANTENNA CURRENT (Adjustable)
SOURCE: Dubravko, 9A9DR
CHECH ARMY ANTENNA MATCH RS 41-3
Manufactured in Chech Republic
ELECTROMECHANICAL SET
TYPE: T MATCH, ROLLER INDUCTOR, AIR GAP CAPACITOR
FREQUENCY: 2 -12 MHz
POWER: 500 W
INDICATOR: ANTENNA CURRENT
SOURCE: 9A5JR / OE3REB Dr. Ronald Eisenwagner - Ron

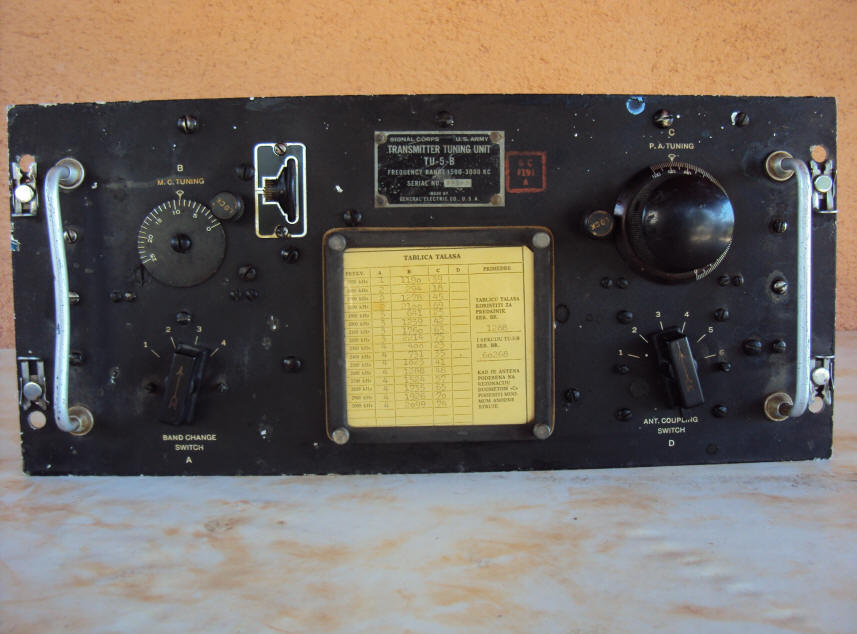

TRANSMITTER TUNING UNIT TU-5-B
Manufactured in General Electric Co., USA
ELECTROMECHANICAL SET
TYPE: T MATCH, ROLLER INDUCTOR, AIR GAP CAPACITOR
FREQUENCY: 1,5 – 3 MHz
POWER: 300 W
INDICATOR: ANTENNA CURRENT
SOURCE: Krešo Lerota

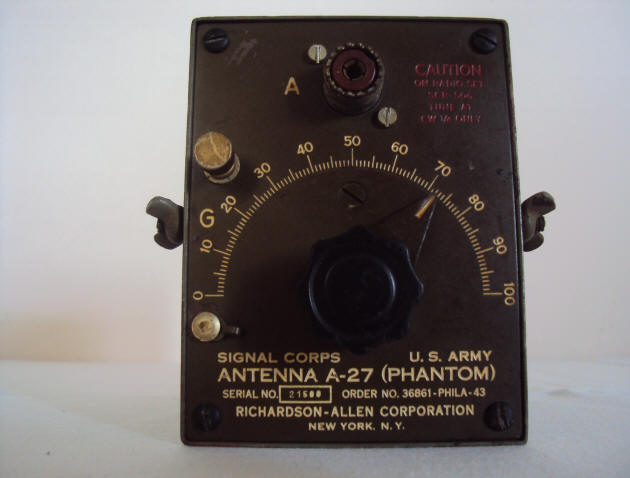

PHANTOM ANTENNA A-27
Manufactured in Richardson-Allen Co., New York, USA
ELECTROMECHANICAL SET
TYPE: L MATCH, AIR GAP CAPACITOR, RESISTOR
FREQUENCY: 2 – 12 MHz
POWER: 100 W
SOURCE: Krešo Lerota
ANTENNA MATCH ICOM AT-130
Manufactured ICOM, Japan
Dimensions: 230mmx340mmx80mm
Weight: 2.7kg
Usable Temperature Range: -30°C ~ +60°C
Rated Voltage: 13.6V DC +/-15%
Frequency Coverage: 1.6~30MHz with antenna 23' (7m) or longer
Input Impedance: 50 ohms (unbalanced)
Max. Input Power: 150W (PEP)
Input Power During Tuning: 10W
Auto Tuning Time: 1.5sec.
Auto Tuning Accuracy: VSWR 2.0:1
SOURCE: Damir, 9A7PQF
USSR ANTENNA MATCH
Manufactured in former USSR
ELECTROMECHANICAL SET
TYPE: T MATCH, ROLLER INDUCTOR
FREQUENCY: 2 -12 MHz
POWER: 200 W
SOURCE: RADE LINŠAK, 9A6RJD
ANTENNA 2 TUBES AMPLIFIER
Manufactured in Germany
TYPE: 2 TUBES AMPLIFIER
FREQUENCY: 30 to 70 MHz
SOURCE: 9A5JR / OE3REB Dr. Ronald Eisenwagner - Ron via Krešo Lerota

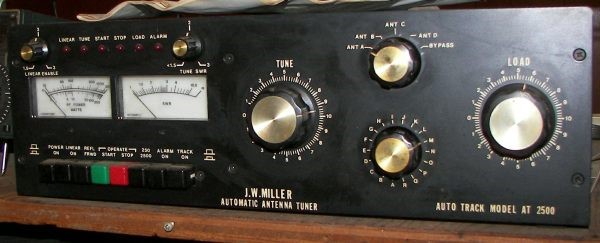

AUTOMATIC ANTENNA TUNER MILLER AT 2500
Manufactured in USA
ELECTROMECHANICAL SET
TYPE: π MATCH, ROLLER INDUCTOR, 2 AIR GAP CAPACITORS
FREQUENCY: 2 -30 MHz
POWER: 2500 W
INDICATOR: 250W / 2500W POWER & SWR INDICATOR
SOURCE: Dubravko, 9A9DR
ANTENNA TUNER MFJ-902
Manufactured in USA
ELECTROMECHANICAL SET
TYPE: π MATCH, INDUCTOR, 2 AIR GAP CAPACITORS
FREQUENCY: 2 -30 MHz
POWER: 150 W
SOURCE: Dubravko, 9A9DR

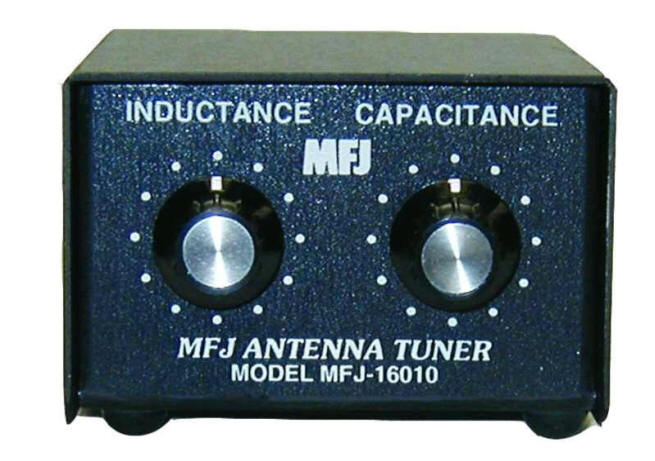

LONG WIRE ANTENNA TUNER MFJ-16010
Manufactured in USA
ELECTROMECHANICAL SET
TYPE: L MATCH, INDUCTOR, AIR GAP CAPACITOR
FREQUENCY: 2 -30 MHz
POWER: 150 W
SOURCE: Dubravko, 9A9DR
CODAN WHIP ANTENNA WITH TUNER 9350
SOURCE: Milan, 9A2US
CODAN WHIP ANTENNA WITH TUNER 8558
Manufactured in Australia
SOURCE: Oto, 9A4OP

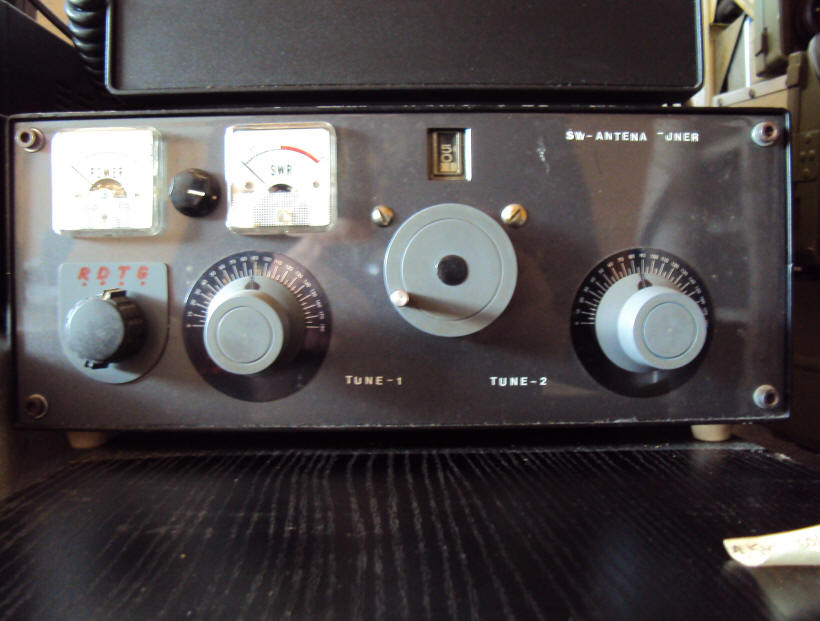

SHORT VAWE ANTENNA TUNER S-A-T
Range: 1 – 30 MHz
π MATCH
2 air capacitors
1 roler
Power: 300 W
SOURCE: Dubravko, 9A9DR

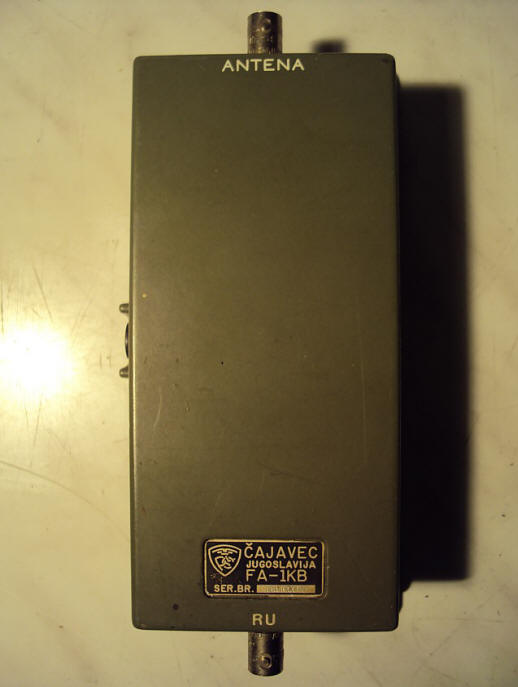

ANTENNA FILTER FA-1KB
Manufactured by "Čajevec", Bosnia and Herzegovina
SOURCE: Jakuševac, 21. 12. 2011. (Šrajber)

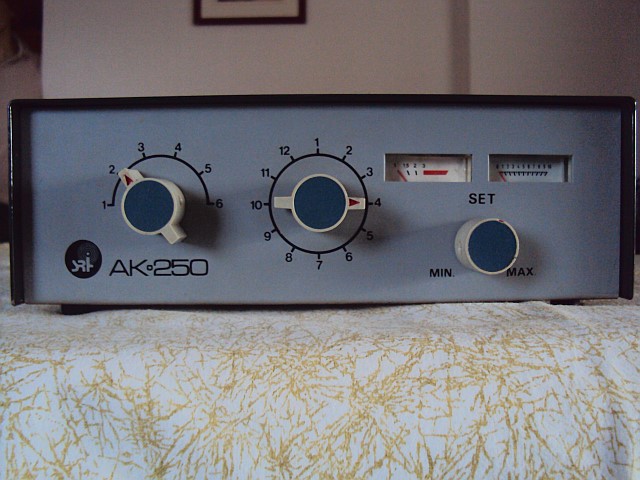

AK-250
SHORTWAVE ANTENNA TUNER
3,5 - 28 MHz
SOURCE: Dubravko Rogale (homebrew)
1,8 - 28 MHz
SOURCE: Dubravko Rogale (Jarun)
